KDB600

Cummins QSB 6.7, Tier 4 Final diesel, 260 hp engine with hydrostatic and vane pumps for propelling brooms and controls. Metal engine enclosure with removable doors and guarded exhaust. All-wheel drivetrain with four-speed manual shift transmission. Wheels can be insulated or non-insulated. Air applied brakes with cobra shoes. Spring applied parking brakes on all four wheels. Funk four speed transmission. Standard turntable.

This highly-functional cab is designed for operator comfort and safety, featuring well-organized controls and safety glass windows. It is temperature-controlled, sound-insulated, and equipped with a comfortable seat, seat belt, electric wipers, air horn, rearview windows, West Coast mirrors, travel lights, and standard work lights on all four sides.

Hydraulically driven front broom equipped with 228 solid rubber elements measuring 2” diameter by 18” long. A patented 45° V-style stone deflector that is raised and lowered hydraulically for easy and efficient element replacement comes standard.

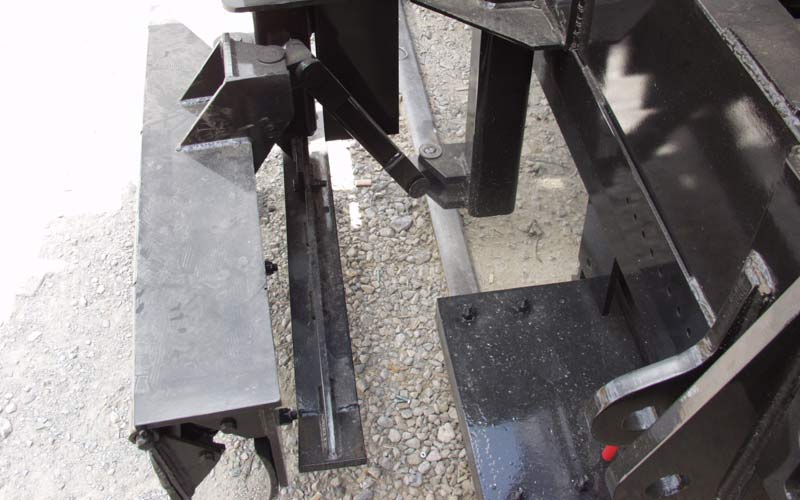

Patented side-mounted ridge plows are spring loaded to fold out of the way of uneven ties. A skid assembly allows ridge plows to be held even with the track surface at all times.

The reversible rear broom is hydraulically driven and equipped with 228 solid rubber elements measuring 2” diameter by 18” long. The shroud is fabricated from T1 steel for durability. The rear plate can be raised hydraulically for easy element replacement. Reversing the rotation allows the operator to sweep away from the switches.

LENGTH	35’-6” (10.8m)
WIDTH	10’-8” (3.3m)
HEIGHT	11’-6” (3.5m)
WEIGHT	42,000 lbs. (19.1T)
WHEELBASE	14’-0” (4.3m)
WH. DIAMETER	28″ (711mm)

KDB600

Technical Specs

Machine Description
